                                Order Note




                                REFER TO DESIGN DATA LIST WHEN ORDER

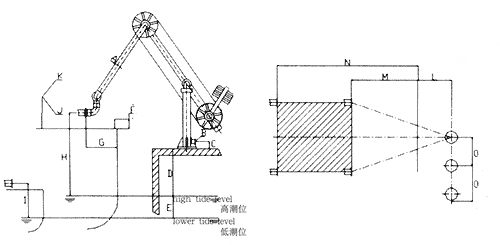

                                      Data list of design system
                                        of Loading Arms




                                      Design data List of
                                        Truck and Railcar Loading Arms









                                Data frame of design system
                                  of Loading Arms











                          Data list of design system of Loading
                                    Arms(Download)












                                      Meter
                                      Specification




                                      A

                                      Diameter
                                        of loading Arms




                                      B

                                      Types
                                        and specifications of flange connecting
                                        to oil pipe on jetty




                                      C

                                      Height
                                        of entrance flange to berth face




                                      D

                                      Height
                                        of the highest tide level to berth face





                                      E

                                      Maximum
                                        tidal range




                                      F

                                      Height
                                        of ship rail




                                      G

                                      Minimum
                                        distance between flange face and ship
                                        edge




                                      H

                                      Height
                                        of ship flange centreline to the highest
                                        tide level

                                        (maximum ship with unload)




                                      I

                                      Height
                                        of ship flange centreline to the lowest
                                        tide level

                                        (minimum ship with full load)




                                      J

                                      Minimum
                                        height of ship flange centrelinge to deck




                                      K

                                      Maximum
                                        height of ship flange centrelinge to deck




                                      L

                                      Distance
                                        between centreline of riser and berh edge




                                      M

                                      Minimum
                                        distance between berth edge and ship flange




                                      N

                                      Maximum
                                        destance between berth edge and ship flange




                                      O

                                      Distance
                                        of risers of neighbour Loading Arms




                                      P

                                      Wind
                                        load:　woking state:KPa no working state:KPa




                                      Q

                                      Earthquake
                                        intensity




                                      R

                                      Control
                                        fornual: hydraulic:(handle electric)




                                      S

                                      Number




                                      T

                                      One control
                                        system control some Loading Arms




                                      Loading
                                        Arms

                                      No

                                      Number

                                      Cargo
                                      Density(kg/m3)
                                      Working

                                        pressure

                                        (Mpa)
                                      Temperature℃





                                      1










                                      2










                                      3










                                      4
